High-Performance Light Curtain Sensor (2–2.5m) for Industrial Door Safety-U-SENSORS

La description

Looking for a reliable and high-performance light curtain sensor for industrial or commercial doors? Our 2–2.5 meter Light Curtain Sensor is designed to enhance safety, improve operational efficiency, and reduce maintenance for high-speed doors and sectional doors.

Whether you're working with automatic rolling doors, industrial gate systems, or warehouse loading bays, this sensor provides accurate infrared beam detection, fast response time, and seamless integration — all packed into a compact and durable housing.

Fonctionnalité

Caractéristiques

Wide Sensing Range: Operating range from 1 to 10 meters

Criss-cross beam design: Improved obstacle detection and safety coverage

Fast response time: Less than 30 ms for immediate reaction

Compact aluminum housing: Natural anodized finish, measuring only 22.4 mm × 17.4 mm

Rugged and waterproof: IP67-rated protection against dust and water

Supports high-speed doors up to 0.9 m/s

Real-time self-checking: Ensures reliability and simplifies installation

Electrical synchronization: Improves resistance to light interference and strobe lights

Applications

This light curtain sensor is ideal for:

High-speed automatic doors in logistics centers and factories
Sectional doors with or without door blanking function
Industrial automation zones requiring presence detection
Loading bays and cleanrooms that need touchless access control

It integrates easily into existing control systems and can be mounted directly to the door edge.

Smart Features

Door Blanking Function: Intelligent detection to ignore fixed parts during door movement

Selectable Output Logic: Flexible for different control board logic (PNP or NPN)

LED Status Indicators: Clear signal feedback for power and detection status

Electrical Synchronization Cable Included: 5m sync cable with AWG26 wires

Included in the Package

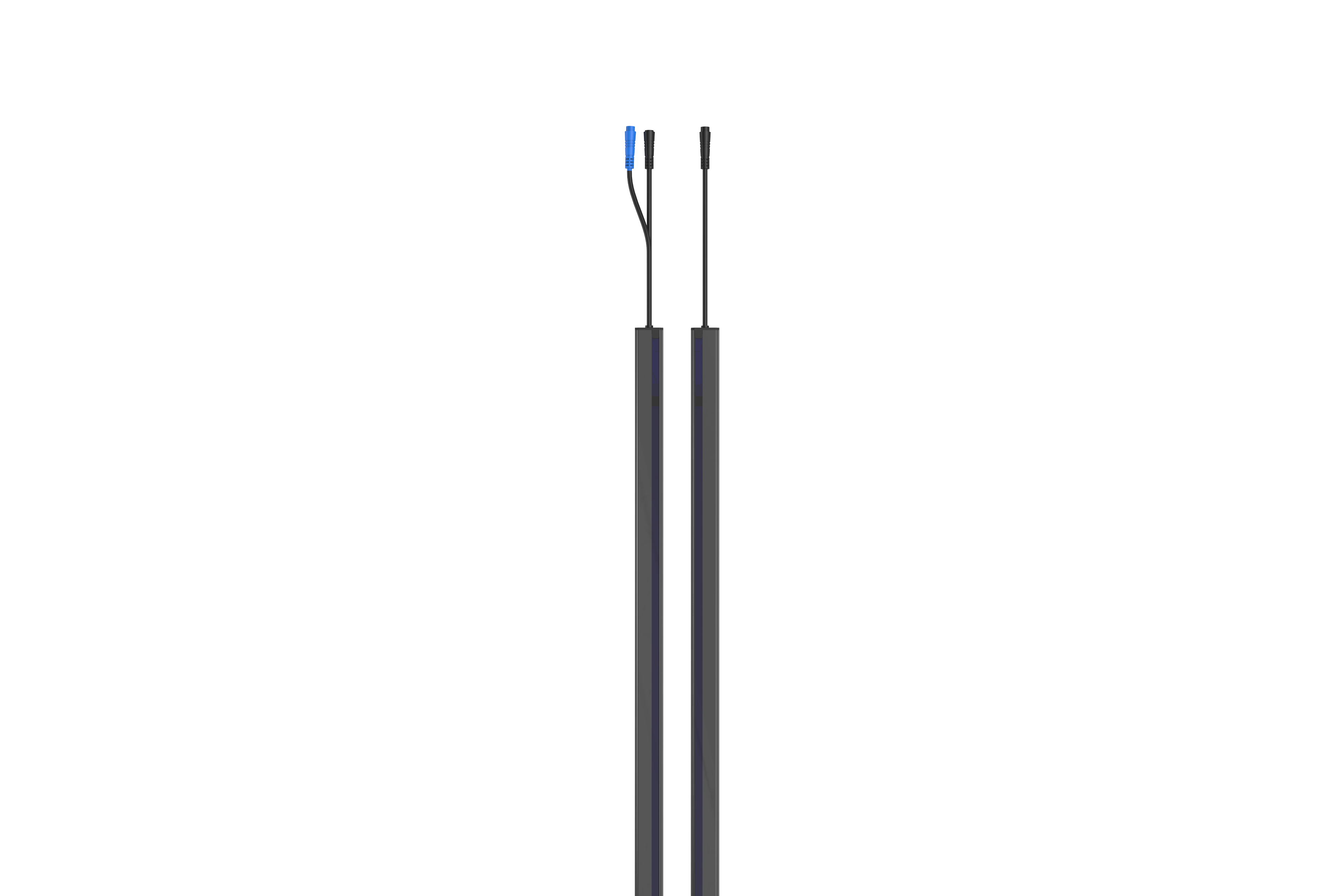

Emitter (Tx) and Receiver (Rx) Units

Connection and Synchronization Cables (15m & 5m)

Mounting Brackets

User Manual

Troubleshooting & Installation Tips

Ensure proper alignment of the beams (green LED indicator will light up)

Keep cables away from high-voltage sources and door motors

Clean the sensor lens with a soft cloth to avoid interference

Avoid exposure to direct sunlight or strong infrared light sources

TABLEAU DE SPÉCIFICATIONS

Max. Protection Height :	1751mm/2487mm
Number of Beams :	19 / 23
Operating Voltage :	10 – 30 VDC
Output Type:	PNP/NPN (Push-Pull)
Output Load :	100 mA
Current Consumption :	Max Tx: 80mA / Rx: 45mA
Ambient Light Resistance :	Up to 100,000 Lux
Operating Temperature :	-25°C to +60°C
Storage Temperature :	-40°C to +65°C
Relative Humidity :	≤75%
Enclosure Rating :	IP67 (Dustproof and Waterproof)
